Home Electrical Flashers ULTRA FLASH II NON AUDIBLE ALTERNATING FLAS

ULTRA FLASH II NON AUDIBLE ALTERNATING FLAS

PART TRU97272
SUPPLIER ---
SUPPLIER PART # ---
Calculating price...
QUANTITY

About this item

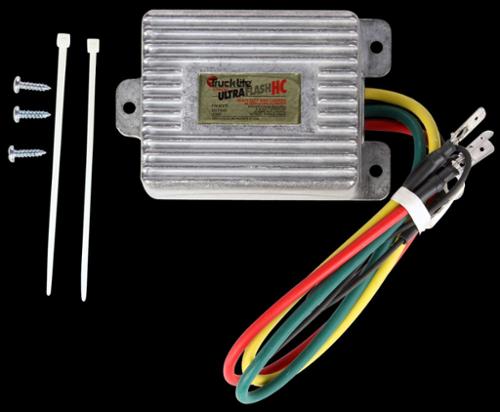

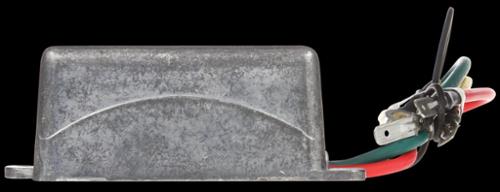

Alternating Flasher, 20 Light Heavy-Duty Solid-State, Aluminum Flasher Module, 90fpm, 12-24V, Hardwired, Spade Terminal/Ring Terminal

ULTRA FLASH II High Current,Solid-state electronics are totally encapsulated in polyurethane for moisture and corrosion protection,Designed to protect against short circuit overloads with a self-resetting feature,97270 and 97271 rated for loads below 40 amps at 128v (20,32 cp) or below 20 amps at 256v,97272 rated for loads below 25 amps at 128v per channel or below 125 amps at 256v per channel,Designed to work with 12V or 24V electrical systems and operated from 9v to 32v,97270 and 97271 feature 12'' leads with two 1/4'' spade terminals and one 1/4'' ring with heat shrink tubing,97272 features 12'' leads with three 1/4'' spade terminals and one 1/4" ring with heat sink tubing,Used for both LED or incandescent lamps,Do not expose to moisture or liquid

  • ULTRA FLASH II High Current,Solid-state electronics are totally encapsulated in polyurethane for moisture and corrosion protection,Designed to protect against short circuit overloads with a self-resetting feature

There are currently no resources for this product.

Kit (Yes/No) Kit (Yes/No)

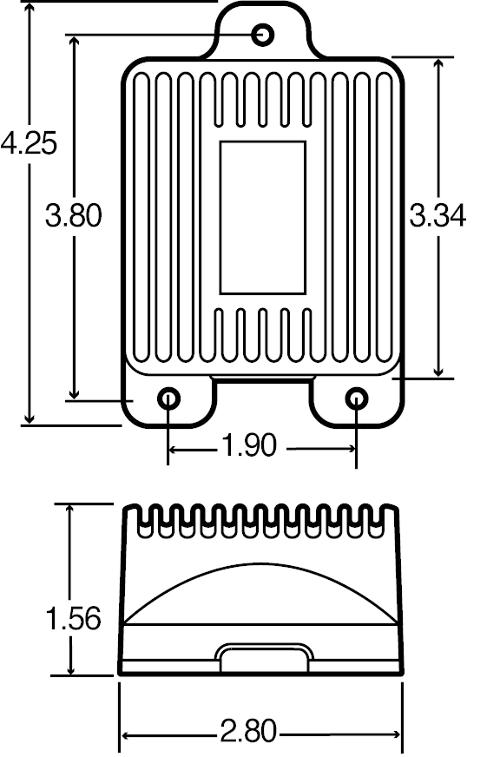

Total Width In INH 4.25
Housing Material Aluminum
Voltage (VLT) 12,24
Plug Side Two Spade Terminal,Ring Terminal
Taxonomy Lights.Flasher Modules
Total Depth In MMT 71.12
Lamp Connection Hardwired
Total Height In MMT 39.62 MM
Weight In LB 0.4
Product Group Light Replacement Parts
Plug Side One Hardwired
Total Width In MMT 107.95
Number of Wires 4
Brand Truck-Lite
Mount Type 3 Screw
Total Height In INH 1.56
Total Depth In INH 2.8
Common Size -
