36 SERIES FLEXITE LICENSE LAMP 10-30V

PART TRU36140C
SUPPLIER TruckLite
SUPPLIER PART # 36140C
Calculating price...
QUANTITY

About this item

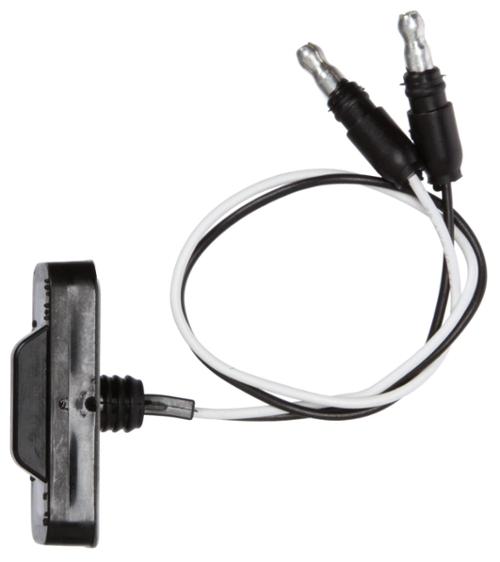

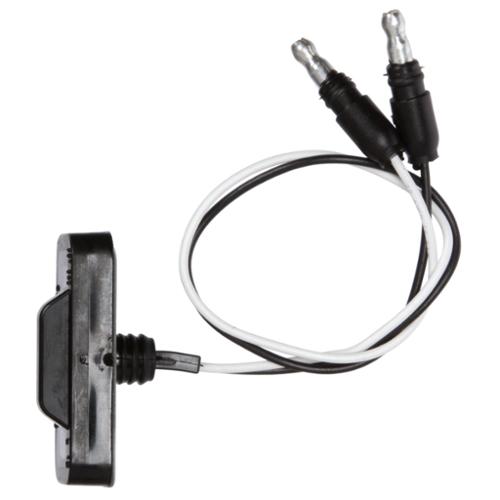

36 Series, LED, 1"x2", Rectangular, Clear, 3 Diode, Black, Adhesive Mount, .180 Bullet, License Light

Provides license lamp solution that requires no mounting brackets or installation screws;Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner;Gray and black brackets are only for rear exit wire lamp, (36140C), and are available if preferred over surface mounting;OmniVolt;Hardwired with rear and side exit wires complete with 180 degrees

  • Provides license lamp solution that requires no mounting brackets or installation screws
  • Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner

There are currently no resources for this product.

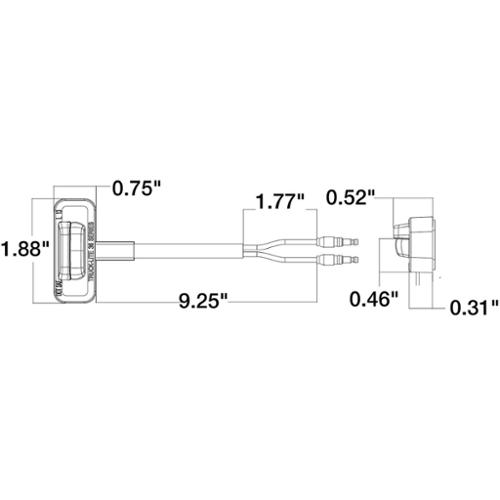

Lens Shape Rectangular
Total Width In INH 1.88
Housing Material Polycarbonate
Packaging Type Standard
Voltage (VLT) 12;24
Plug Side Two .180 Bullet
Weight In LB 0.03
Series 36 Series
Sealed/Bulb Replaceable Sealed
Brand Truck-Lite
Lighting Technology LED
Compliance Family R4;J587;L
Mount Type Adhesive Mount
Mount/Trim Color Black
Total Depth In INH 0.75
Lens Color Clear
Kit (Yes/No) Kit (Yes/No)
Lens Material Polycarbonate
Current_AMP 0.05
Lamp Connection Hardwired
Taxonomy Lights.License Lights
Total Depth In MMT 19.05
Total Height In MMT 13.21
Plug Side One Hardwired
Product Subgroup License Light
Product Group Back Up & License Lighting
Lens Height_INH 0.56
Total Width In MMT 47.75
Number of Wires 2
Lens Width_INH 1.49
Total Height In INH 0.52
Number of Diodes/Bulbs 3
Common Size 1"x2"
Standards Met R4
Mount/Trim Material Polycarbonate
