Home Lighting Clearance / Marker LED 35 SERIES OMNI 10- 30 VOLT LAMP

LED 35 SERIES OMNI 10- 30 VOLT LAMP

PART TRU35890Y
SUPPLIER TruckLite
SUPPLIER PART # 35890Y
Calculating price...
QUANTITY

About this item

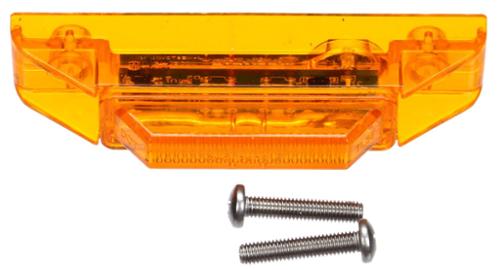

35 Series, LED, 1"x4", Rectangular, Yellow, 2 Diode, Yellow, 2 Screw Mount, P2;;P3, Marker & Clearance Light

Complies with SAE J592 and J594 when mounted horizontally;;Complies with SAE J592 when mounted horizontally between 0 degrees to 34 degrees rollback;;OmniVolt Technology (12 or 24V systems will run without adjustment);;Form/Fit/Function replacements for current product;;Superiority only Truck-Lite LEDs can offer :;;LED life surpasses the 2k hours of incandescent bulbs by nearly 50x;;Lens and housing assemblies constructed of impact-resistant polycarbonate;;All electronics fully sealed in epoxy, making lamps less susceptible to shock and vibration;;Faster start-up times and low current draw

  • Complies with SAE J592 and J594 when mounted horizontally
  • Complies with SAE J592 when mounted horizontally between 0 degrees to 34 degrees rollback
  • OmniVolt Technology (12 or 24V systems will run without adjustment)

There are currently no resources for this product.

Color Yellow
Lens Shape Rectangular

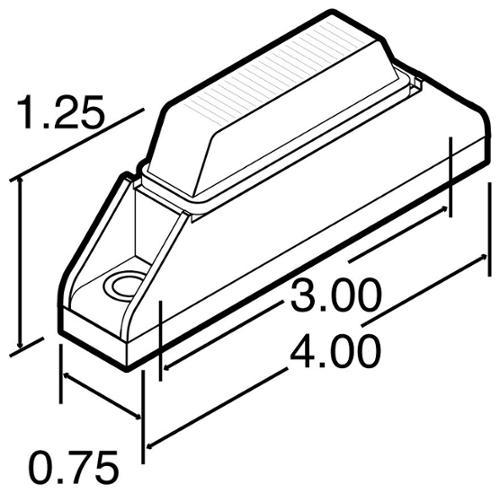

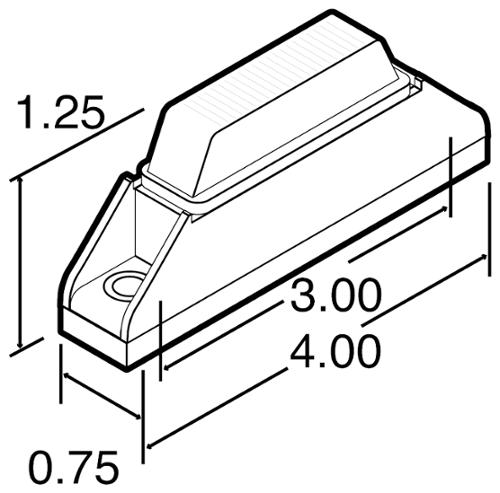

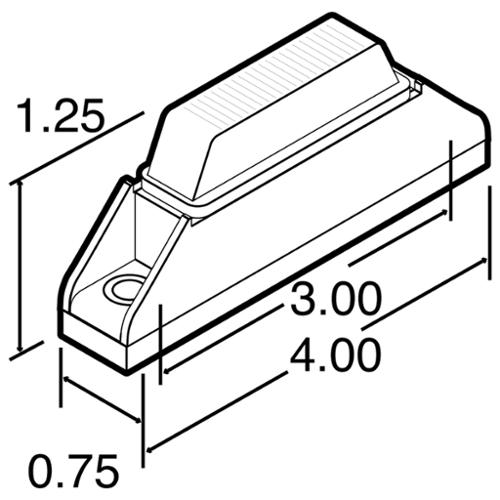

Total Width In INH 4
Housing Material Polycarbonate
Packaging Type Standard
Voltage (VLT) 12
Plug Side Two No Plug
Weight In LB 0.2
Series 35 Series
Sealed/Bulb Replaceable Sealed
Brand Truck-Lite
Lighting Technology LED
Mount Type 2 Screw Mount
Mount/Trim Color Yellow
Total Depth In INH 1.25
Lens Color Yellow
Kit (Yes/No) Kit (Yes/No)
Lens Material Polycarbonate
Lamp Connection Fit 'N Forget M/C
Total Depth In MMT 31.75
Total Height In MMT 19.05 MM
Plug Side One Fit 'N Forget M/C
Product Subgroup Marker & Clearance Light
Product Group Marker & Clearance Lighting
Lens Height_INH 0.75 IN
Total Width In MMT 101.6
Lens Width_INH 4 IN
Total Height In INH 0.75
Number of Diodes/Bulbs 2
Common Size 1"x4"
Standards Met P2
