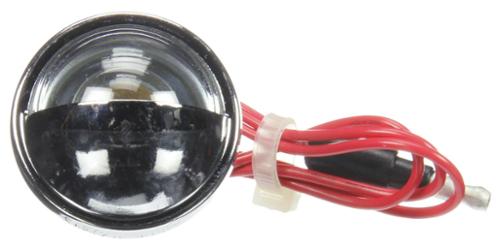

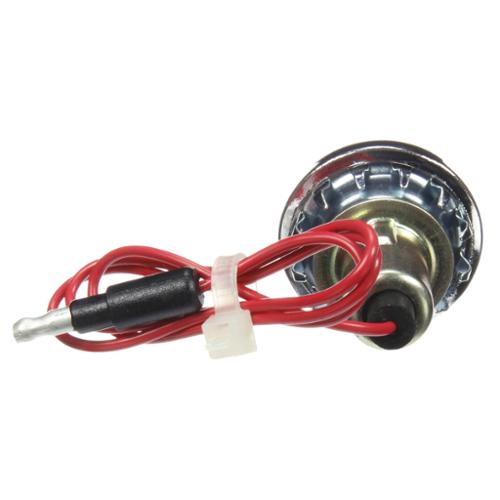

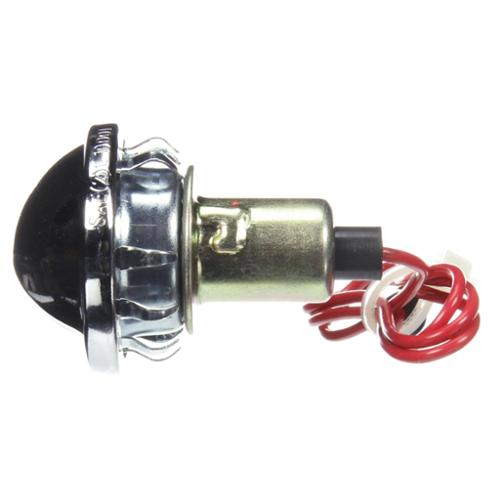

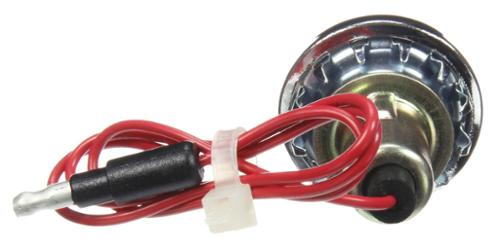

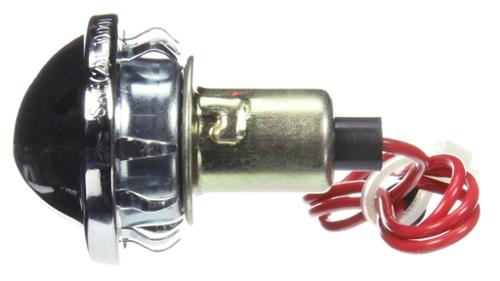

26 SERIES LICENSE/COURTESY LAMP

PART TRU26331
SUPPLIER TruckLite
SUPPLIER PART # 26331
Calculating price...
QUANTITY

About this item

26 Series, Incandescent, 1", Round, Clear, 1 Diode, Chrome, Grommet Mount, .180 Bullet, License Light

Snap-fit design uses standard 1-1/4" diameter hole

  • Features chrome-plated brass housing
  • Snap-fit design uses standard 1-1/4" diameter hole
  • Commonly used to illuminate a license plate on step bumpers
  • Two units required for license illumination

There are currently no resources for this product.

Lens Shape Round
Total Width In INH 1.88
Housing Material Brass
Packaging Type Standard
Voltage (VLT) 12
Plug Side Two .180 Bullet
Weight In LB 9
Series 26 Series
Sealed/Bulb Replaceable Bulb Replaceable
Brand Truck-Lite
Lighting Technology Incandescent
Compliance Family FMVSS 108;CMVSS 108;DOT;SAE
Mount Type Grommet Mount
Mount/Trim Color Chrome
Total Depth In INH 1.5
Lens Color Clear
Kit (Yes/No) Kit (Yes/No)
Lens Material Polycarbonate
Current_AMP 0.59
Lamp Connection Hardwired
Taxonomy Lights.License Lights
Total Depth In MMT 38.1
Total Height In MMT 47.75
Plug Side One Hardwired
Product Subgroup License Light
Product Group Back Up & License Lighting
Lens Height_INH 1.27
Total Width In MMT 38.1
Number of Wires 1
Lens Width_INH 1.27
Total Height In INH 1.88
Number of Diodes/Bulbs 1
Common Size 1"
Standards Met L2
Mount/Trim Material Zinc
