Home Lighting Turn Signal Lights 22 SERIES SIDE TURN LAMP

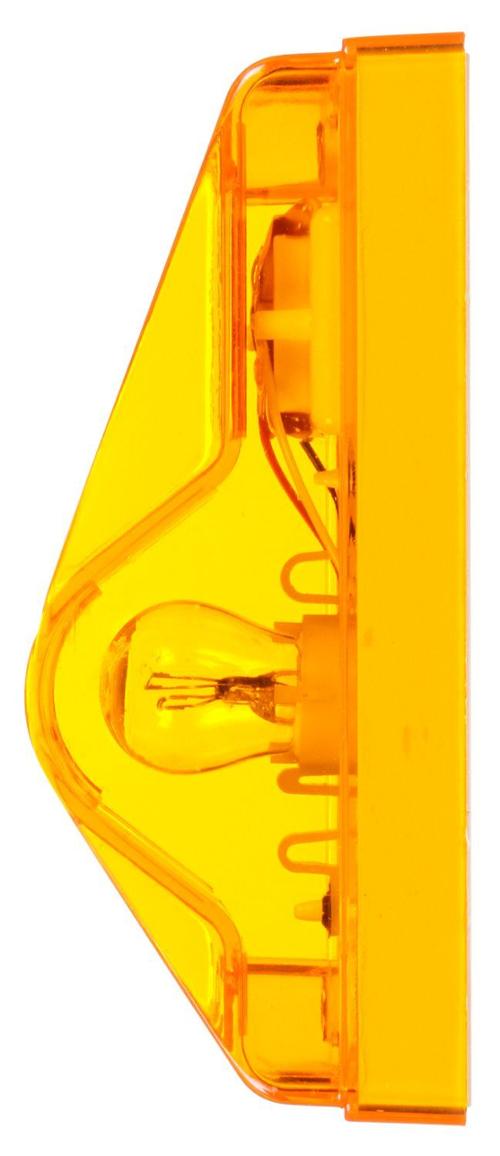

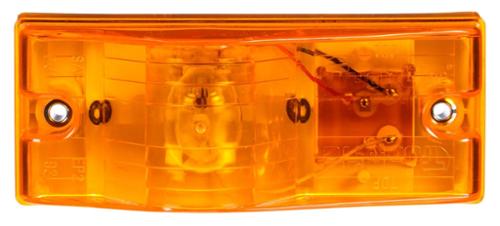

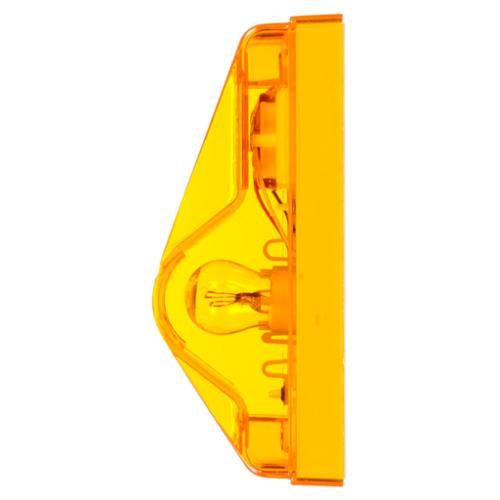

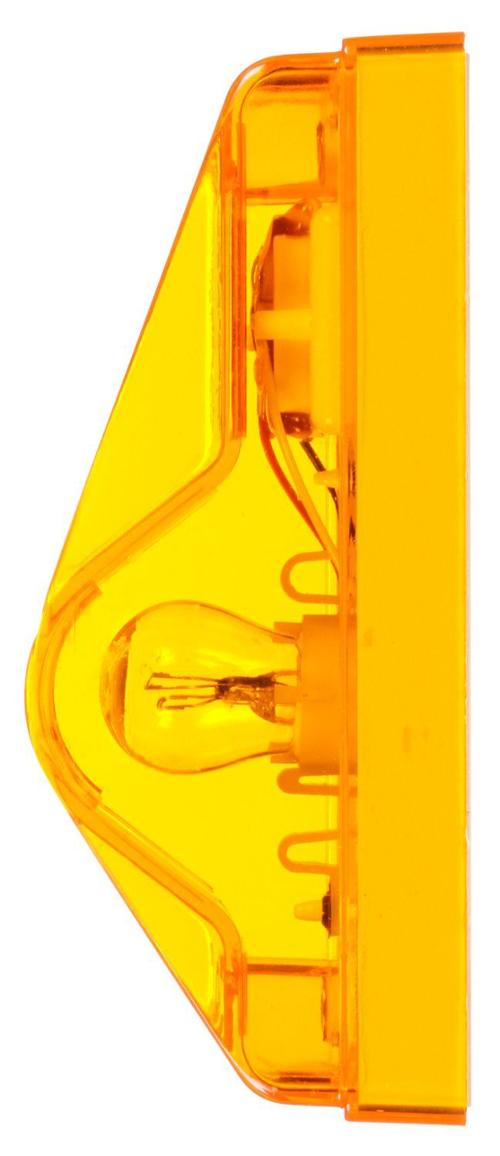

22 SERIES SIDE TURN LAMP

PART TRU22202Y
SUPPLIER TruckLite
SUPPLIER PART # 22202Y
Calculating price...
QUANTITY

About this item

22 Series, Incandescent, 2"x6", Rectangular, Yellow, 1 Diode, 2 Screw Mount, Turn Signal Light

Features dual contact marker/clearance and side turn or auxiliary turn functions

  • Features dual contact marker/clearance and side turn or auxiliary turn functions
  • Mounts on surface of vehicle or with "
  • L"
  • bracket
  • Red lamp should be used for rear vehicle applications

There are currently no resources for this product.

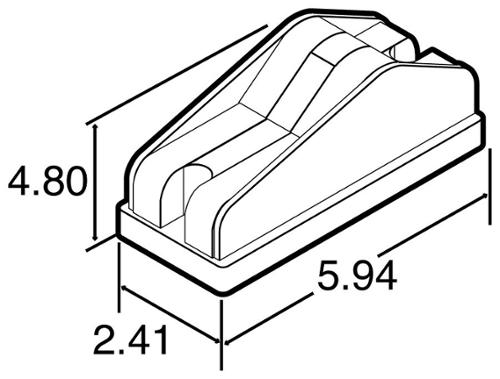

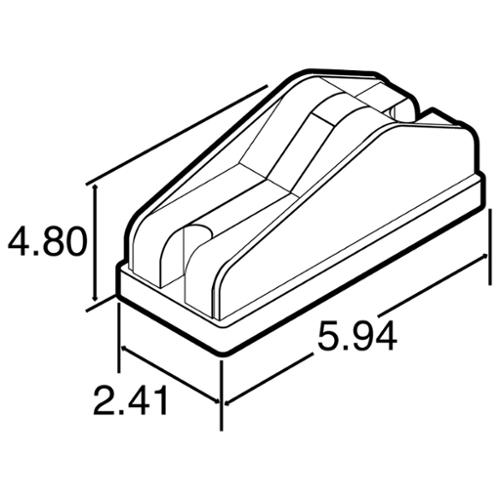

Lens Shape Rectangular
Total Width In INH 5.94
Housing Material Polycarbonate
Packaging Type Standard
Voltage (VLT) 12
Plug Side Two No Plug
Current Minor 0.49
Weight In LB 20
Series 22 Series
Sealed/Bulb Replaceable Sealed
Brand Truck-Lite
Lighting Technology Incandescent
Compliance Family FMVSS 108

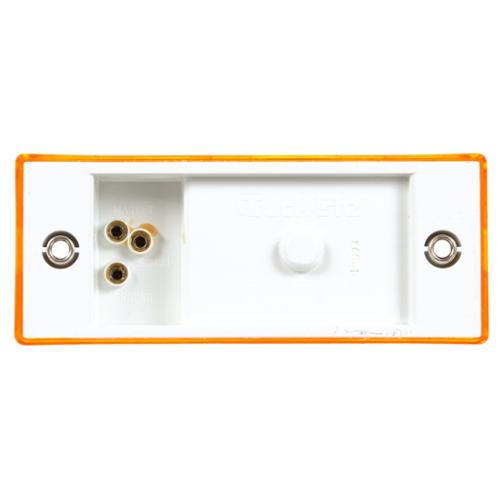

Mount Type 2 Screw Mount
Position Side
Total Depth In INH 2.41
Lens Color Yellow
Kit (Yes/No) Kit (Yes/No)
Lens Material Polycarbonate
Lamp Connection PL-3
Taxonomy Lights.Turn Signal Lights
Total Depth In MMT 61.21
Total Height In MMT 60.96 MM
Plug Side One PL-3
Product Subgroup Turn Signal Light
Product Group Signal Lighting
Lens Height_INH 2.4 IN
Total Width In MMT 150.88
Lens Width_INH 5.94 IN
Total Height In INH 2.4
Number of Diodes/Bulbs 1
Common Size 2"x6"
Standards Met P2
