PART TIMSET413

SUPPLIER Timken

SUPPLIER PART # SET413

Calculating price...

QUANTITY

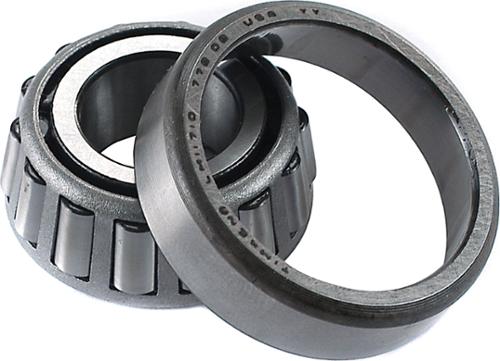

Tapered Roller Bearing Cone And Cup Assembly

Timken Is The Recognized Global Leader In Tapered Roller Bearings.

Timken Is The Recognized Global Leader In Tapered Roller Bearings.
Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
Unrivaled Technology And Engineering Support
Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life

There are currently no resources for this product.

Cup Outside Diameter 93.26

Outer Race/Cup Inside Diameter 4.5064 IN

California Proposition 65 Required N

Inside Diameter 66.675

Cone Width 30.30

Ball Joint Housing Material N/A

Cone Radius 0.140

Cone Outside Diameter 90.526 MM

Inner Ring Width 1.51 IN

Bearing Cup Radius 3.17

Bearing Type Rolling

Brake Pilot Diameter N/A

Housing Material N/A

Cone Inside Diameter 44.45

Inner Race/Cup Inside Diameter 101.0862 MM

Flange Diameter N/A

California Proposition 65 N

Design Cylindrical

Cup Width 23.81

Outside Diameter 122.238

Width 1.5

Type Tapered Roller

ABS Sensor Ring Included N/A

Hub Pilot Diameter N/A

Number of Lugs N/A

Bearing Included Bearing Assembly

Material Steel

Pre-Greased No

Outer Ring Width 1.17 IN
