PART TIMSET403

SUPPLIER Timken

SUPPLIER PART # SET403

Calculating price...

QUANTITY

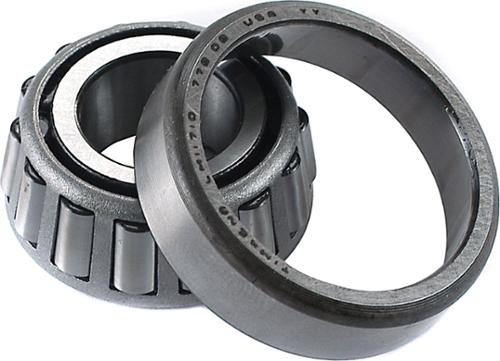

Tapered Roller Bearing Cone And Cup Assembly

Timken Is The Recognized Global Leader In Tapered Roller Bearings.

Timken Is The Recognized Global Leader In Tapered Roller Bearings.
Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
Unrivaled Technology And Engineering Support
Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life

There are currently no resources for this product.

Cup Outside Diameter 6.000

Outer Race/Cup Inside Diameter 140.9921 MM

California Proposition 65 Required N

Inside Diameter 95.25

Cone Width 36.32

Ball Joint Housing Material N/A

Cone Radius 3.17

Cone Outside Diameter 120.94 MM

Inner Ring Width 36.322 MM

Bearing Cup Radius 5.16

Bearing Type Rolling

Brake Pilot Diameter N/A

Housing Material N/A

Cone Inside Diameter 95.25

Inner Race/Cup Inside Diameter 123.2184 MM

Flange Diameter N/A

California Proposition 65 N

Design Cylindrical

Cup Width 30.16

Outside Diameter 152.4

Width 1.5625

Type Tapered Roller

ABS Sensor Ring Included N/A

Hub Pilot Diameter N/A

Number of Lugs N/A

Bearing Included Bearing Assembly

Material Steel

Pre-Greased No

Outer Ring Width 1.1875 IN
