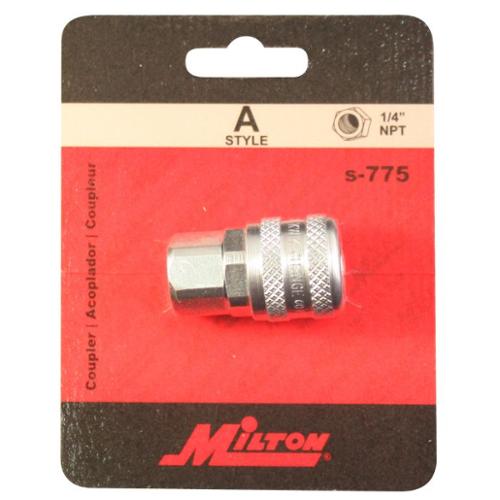

1/4" Fem. Body A-Style

PART MTNS-775
SUPPLIER Milton
SUPPLIER PART # S-775
Calculating price...
QUANTITY

About this item

Enhance your pneumatic connections with the Milton 1/4" FNPT A-Style Push-Type Coupler, designed for user-friendly operation. This coupler ensures seamless functionality—simply push the plug into the coupler for engagement and pull the sleeve back for easy removal. Crafted from plated steel to effectively resist rust, these A-Style couplers guarantee durability across various applications. With a maximum inlet pressure of 300 PSI, they deliver reliable performance even in challenging conditions. Featuring a 1/4" basic flow size and a maximum air flow of 34 SCFM, these couplers offer versatility and efficiency for all your pneumatic requirements. Elevate your air tool setup with the Milton 1/4" FNPT A-Style Push-Type Coupler, providing a combination of user-friendly design, durability, and high performance to boost productivity.

  • 1/4" female national pipe thread
  • Maximum pressure of 300 pounds per square inch
  • Air flow of 40 standard cubic feet per minute
  • Maximum temperature of 250 degrees Fahrenheit

There are currently no resources for this product.

Coupling Mechanism Sleeve
CID A-A59439 Compliant No
Seal Material Buna-N
Coupling Equipment Connection Interface 1/4 in FNPT
Maximum Air Delivery Rate (scfm) 34.0
Maximum Operating Pressure (psi) 300
ISO 6150-B Compliant Yes
Integrated Coupler Shut-Off Valve No - Straight Through
Manufacturer Warranty 1-Year Limited Manufacturer Warranty
Weight (oz) 3.04
Overall Coupling Length (in) 1.68
Maximum Working Temperature (°F) 250
Etched / Stamped Size Identification Yes
NFPA/T3.20.14-1989 R2004 Compliant No
Package Quantity 10
ANSI/B93.51M-1980 Compliant Yes
Coupler Connection Design 2-Pin
California Prop 65 Warning Label (Text) WARNING: This product contains a chemical known to cause cancer.
Air Line Fitting Interchange ARO
Coupler Material Steel
Air Line Fitting Series 1/4 in
