Home Engine Engine Cooling Fan Clutch Assemblies CLUTCH ASSY MOD RCV250+ PCR 162.0 12PK

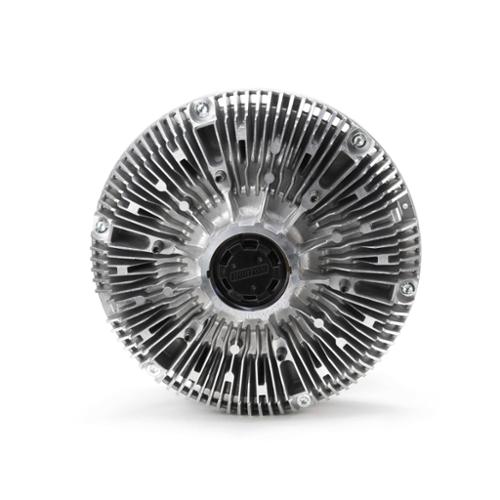

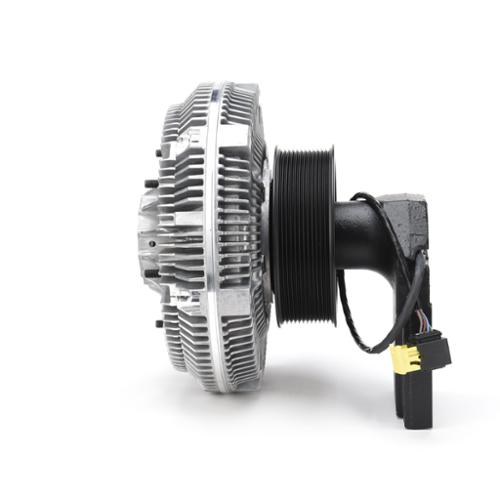

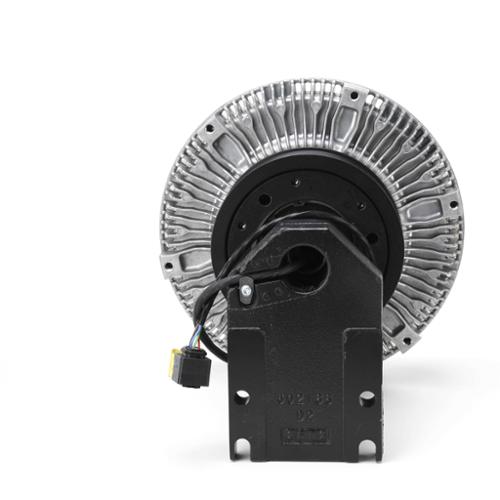

CLUTCH ASSY MOD RCV250+ PCR 162.0 12PK

PART HOR9910315
SUPPLIER ---
SUPPLIER PART # ---
Calculating price...
QUANTITY

About this item

Lighter with a compact design, RCV250 Fully Variable Fan Drives are engineered to turn larger fans that require higher torque. The RCV250 is an integrated belt-driven fan drive that can be mounted in various locations to eliminate the vibration inherent in traditional driveshaft-mounted fan drives.

There are currently no resources for this product.

Belt Configuration 12K
Bolt Circle 3.5
Stud Thread Size .312-18 UNC 2A IN
Fan Pilot Diameter 5 IN
WIRE LENGTH 23.19 IN
Heavy Duty 1
Belt Groove Location 3.39 IN
Connector Type AMP MCP 1-1418479-1
Vertical Mounting Distance 1.57 IN
Center of JB To Top Right Mounting Hole 4.13 IN
Horizontal Mounting Distance 3.94 IN
VOLTAGE 12V
MTG STUD LENGTH 0.76 IN
Overall Length 8.74 IN
Fan Bolt Circle 6 IN
Back Pulley Diameter 6.14 IN
