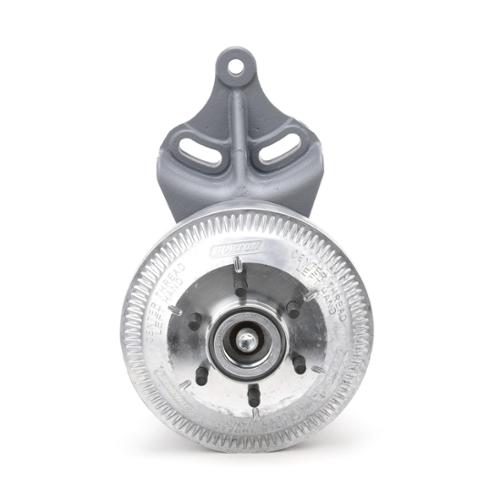

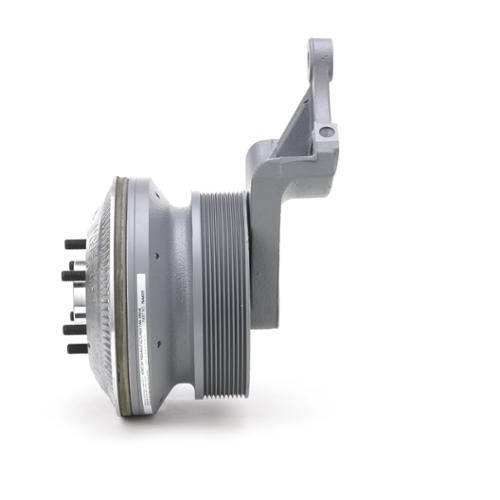

CLUTCH DMA SE 21 REMAN 10-'K' GRV 06.97 OD
There are currently no resources for this product.
Belt Configuration
8K
Stud Thread Size
.375-24 UNF IN
Bolt Circle
3.5 IN
Fan Pilot Diameter
2.55984252 IN
Heavy Duty
True
Belt Groove Location
5.511811024 IN
Fan Blade Stud Length
0.81496063 IN
Vertical Mounting Distance
2.755905512 IN
Center of JB To Top Right Mounting Hole
2.755905512 IN
Horizontal Mounting Distance
3.582677165 IN
Overall Length
11.73228346 IN
Back Pulley Diameter
8.361417323 IN
