ANTI LOCK BRAKE KIT WITH FULL FUNCTION 2M 12

PART HBSAQ963013
SUPPLIER ---
SUPPLIER PART # ---
Calculating price...
QUANTITY

About this item

The latest generation of Haldex ABS, PLC Select platform has the right configuration that will provide you reliable performance time after time, whether using the basic ABS Relay Valve model or the patented FFABS. The Haldex ITCM (Intelligent Trailer Control Module) ABS controller is the newest product in the Haldex ABS product family. The ITCM controller embraces both the PLC (Power Line Carrier) and CAN (Controller Area Network) for communications and diagnostics. The addition of CAN protocol and expanded auxiliary allows for options such as: Roll Stability, Lift Axle Control and many others currently offered and under development for this flash upgradable ECU platform.Haldex PLC Select® includes the exclusive Haldex Select Low/High (SLH) protocol that allows the braking system to cycle deeper and recover faster over competitor’s systems. Select Low/High manages the braking forces between wheels with the highest and lowest rates of deceleration (depending on road surface conditions) maximizing stability while minimizing stopping distance.

There are currently no resources for this product.

Reservoir Port .5 / 3/4 Nipple IN
Delivery Port .375 (4) IN
Voltage 12
Supply Port .375 (1) with Filter IN
Prop 65 Short Warning Cancer & reproductive
ECU Design PLC Select 2M
Control Port .375 IN (1) with Filter
Valve Type ABS Relay or FFABS
Prop 65 Y
Spring Brake Port .375 (4) IN
ECU/Valve Number N9002BB

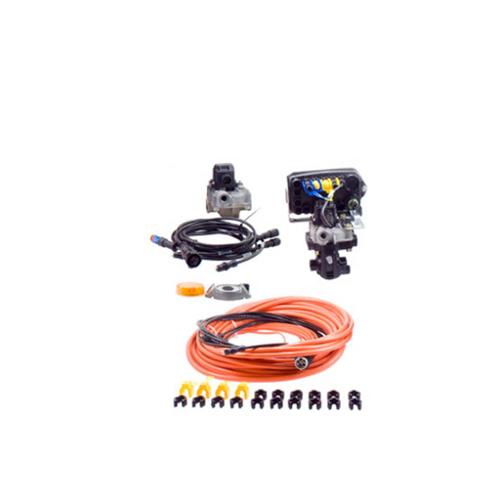

Kit Contents 20M with 12M Light Wire/Power Cord, 1.5M & 2.5M Sensor Extensions, 2-Port Relay Valve, 2.0M Relay Valve Cable, Warning Lamp Kit, Misc. Hardware & Labels
Valve Specifications 4-Port, FFABS Valve - Spring Brake Priority
Related Part A027533909, A027534009, A902700, A920813, A993107, AL10271914, AL364040, AL430666, AL918602, AL919342, AL919802, AL919804, AL920809,AL929819, AQ15463, L30041
