ANTI LOCK BRAKE KIT 2M

PART HBSAQ963004
SUPPLIER Haldex
SUPPLIER PART # AQ963004
Calculating price...
QUANTITY

About this item

The latest generation of Haldex ABS, PLC Select platform has the right configuration that will provide you reliable performance time after time, whether using the basic ABS Relay Valve model or the patented FFABS. The Haldex ITCM (Intelligent Trailer Control Module) ABS controller is the newest product in the Haldex ABS product family. The ITCM controller embraces both the PLC (Power Line Carrier) and CAN (Controller Area Network) for communications and diagnostics. The addition of CAN protocol and expanded auxiliary allows for options such as: Roll Stability, Lift Axle Control and many others currently offered and under development for this flash upgradable ECU platform.Haldex PLC Select® includes the exclusive Haldex Select Low/High (SLH) protocol that allows the braking system to cycle deeper and recover faster over competitor’s systems. Select Low/High manages the braking forces between wheels with the highest and lowest rates of deceleration (depending on road surface conditions) maximizing stability while minimizing stopping distance.

There are currently no resources for this product.

Reservoir Port .5 (1) IN
Delivery Port .375 (2) IN
Voltage 12
Prop 65 Short Warning Cancer & reproductive
ECU Design PLC Select 2M
Control Port .375 IN (1)
Valve Type ABS Relay Valve
Prop 65 Y
ECU/Valve Number N9002A

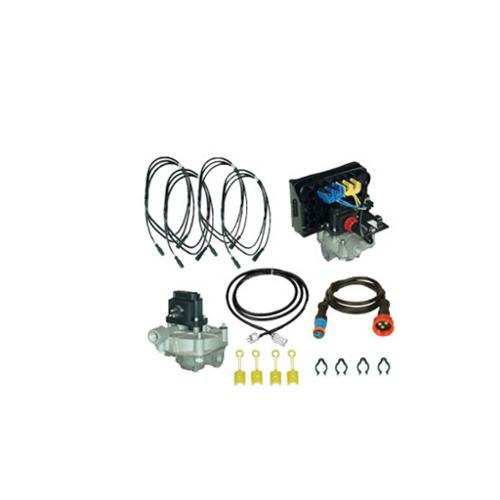

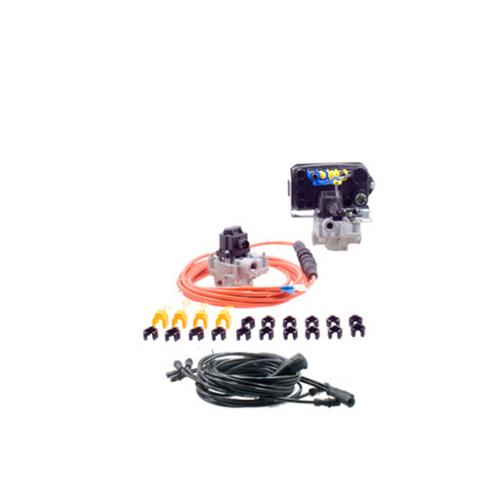

Kit Contents 6.0M Power Cord Extension, 1.5M & 2.5M Sensor Extensions, 2-Port Relay Valve, 2.0M Relay Valve Cable, Hose Clips, Cable Grips, Labels
Valve Specifications 2-Port, ABS Relay Valve with ECU
Related Part A027533909, A902700, A920813, A993107, AL10271914, AL364040, AL919342, AL919804, AL919902, AL920809, AL929819, KN26110, L30041
