PART GROG1032

SUPPLIER Grote

SUPPLIER PART # G1032

Calculating price...

QUANTITY

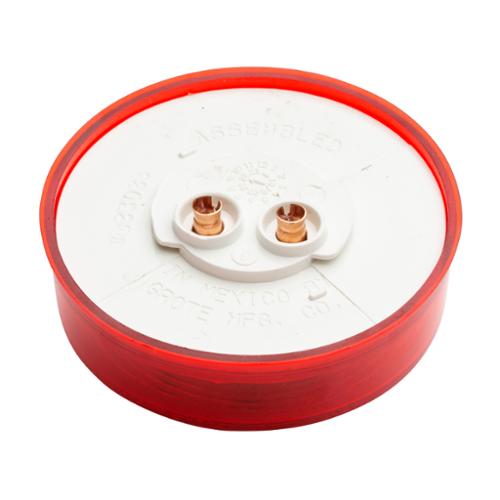

Grote's Hi Count(R) 2 1/2" LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.

Hermetic lens-to-housing seal
Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go retrofit
Fits all popular mountings and grommets
Twist-on mounting for easy installation

25156_GRO_G104X

25156_GRO_G104X.pdf

Lens Color Red

Connection Type PL-10

Functions P2

Material Polycarbonate Housing,Polycarbonate Lens

Color Red

Product Line - Trademark Hi Count(R)

Voltage 12V

Housing Color White

Mounting Type Bracket,Grommet

Shape Round

Diameter 2.5"

Regulations FMVSS 108

LED Y

Amperage .04A

Size 21/2"
