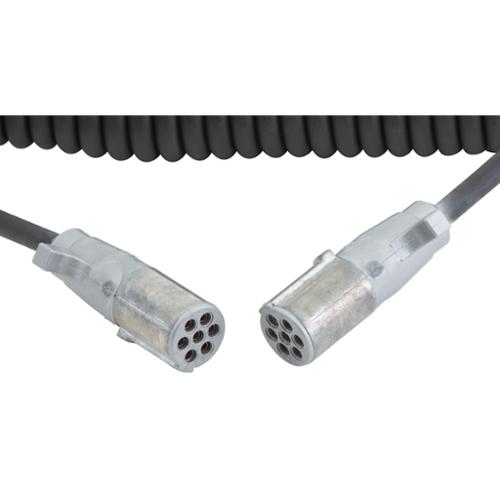

Grote UltraLinkTM Power Cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations. A special adhesive bonds the cable to the plug, eliminating the need for a supporting spring and preventing moisture from entering the back of the plug. Superior cords that provide maximum reliability in the harshest environments
- Zinc die-cast plugs filled w/ elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
- Provides power delivery & exceeds power delivery minimum legal lamp requirements for single/double trailer configurations
- Adhesive bonds cable to plug, eliminating need for supporting spring & preventing moisture from entering the back of the plug
- Advanced polymer jacketing material provides complete sealing and abrasion protection between -55degF and 190?degF (Premium Versions)
- Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
- Provides excellent recoil memory, chemical, and abrasion resistance
There are currently no resources for this product.
Plug
Straight
Material
EVA
Color
Black
Gauge
1/12 GA,6/14 GA
Length
15'
Operating Temperature
-40degF to +176degF (-40degC to +80degC)
Number of Pins
7
Coiled or Straight
Coiled
Plug / Socket #
7
Style
Non-ABS
Standards
J2222,J560b

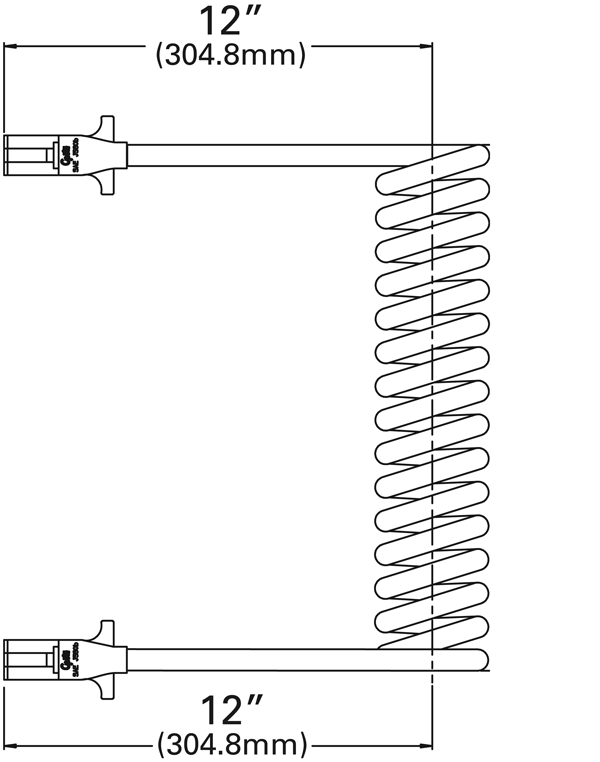

Leads
12"
Regulations
FMVSS 108
