Home Braking System ABS & Stability (ABS) (RSS+) ABS Lighting CLR/MKR LAMP 2.5" YELLOW SUPERNOVA LED ABS

CLR/MKR LAMP 2.5" YELLOW SUPERNOVA LED ABS

PART GRO78423
SUPPLIER Grote
SUPPLIER PART # 78423
Calculating price...
QUANTITY

About this item

With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova(R) 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go(R) Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.

  • Encapsulant potting for total circuit-board protection
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
  • Hermetic lens-to-housing seal
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go(R) retrofit

There are currently no resources for this product.

Height .75"
Lens Color Amber
Connection Type PL-10
Functions P2
Material Polycarbonate Housing,Polycarbonate Lens
Color Amber
Product Line - Trademark SuperNova(R)
Voltage 12V
Housing Color White
Mounting Type Bracket,Grommet
Shape Round

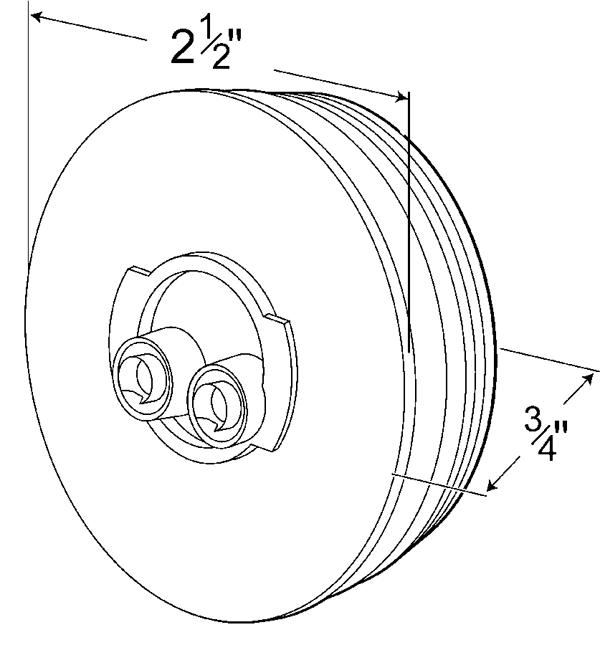

Diameter 2.5"
Regulations FMVSS 108
LED Y
Amperage .06A
Size 21/2"
