Home Lighting Stop/Tail/Turn (S/T/T) STT LAMP RED 4" ROUND FEMALE PIN 3 DIODE

STT LAMP RED 4" ROUND FEMALE PIN 3 DIODE

PART GRO54342
SUPPLIER Grote
SUPPLIER PART # 54342
Calculating price...
QUANTITY

About this item

Our Grote-Select 4-inch LED stop tail turn lights have a faster light-on response time than similar incandescent bulbs, which means a greater stopping alert distance. This helps prevent accidents and improve the visibility of your vehicles on the road. These lights use existing pigtails and wiring, so you can retrofit your vehicles without costly wiring upgrades. They also help prevent theft by mimicking the look of incandescent lighting, all while still using more effective and efficient LED technology to improve the life and decrease the current draw from the lights. Moisture intrusion is prevented with a hermetic lens-to-housing seal, helping to increase the life of the light even more.

  • flange mounting options
  • Uses existing pigtails and wiring for cost-effective retrofit
  • Longer life and less current draw than standard incandescent lamps leaves more voltage available to other vehicle systems
  • Resembles incandescent lights to alleviate theft concerns
  • With a wider range of voltage, lights can be used virtually anywhere
  • Hermetic lens-to-housing seal prevents moisture intrusion
  • Fits all Grote bracket, grommet, &
  • Faster light-on response time provides greater stopping alert distance than incandescent lamps
23224_GRO_Grote_Select_4inch_LED_STT_data_sheet_FRENCH
23224_GRO_Grote_Select_4inch_LED_STT_data_sheet_FRENCH.pdf
23224_GRO_Grote_Select_4inch_LED_STT_data_sheet_SPANISH
23224_GRO_Grote_Select_4inch_LED_STT_data_sheet_SPANISH.pdf
23224_GRO_Grote_Select_4inch_STT_Data_Sheet
23224_GRO_Grote_Select_4inch_STT_Data_Sheet.pdf
Lens Color Red
Connection Type Female Pin
Functions I,P2,S,T
Material ABS Housing,Acrylic Lens
Color Red
Product Line - Trademark Grote SelectTM
Voltage 12V
Housing Color White
Mounting Type Grommet
Shape Round

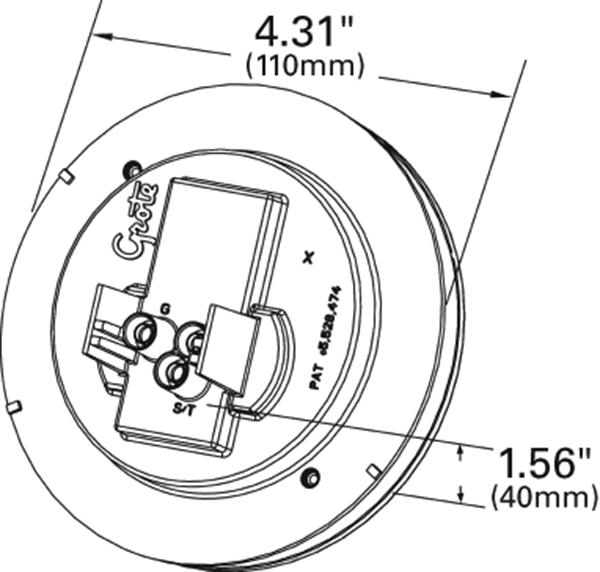

Diameter 4"
Regulations FMVSS 108
LED Y
Amperage .03A-.24A
Size 4"
