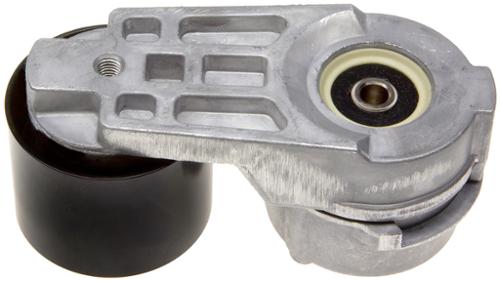

FleetRunner Heavy-Duty Automatic Belt Tensioners are the longest-lasting belt tensioners in the industry, engineered to exceed demanding OEM requirements. In laboratory tests under extreme peak-to-peak vibration and contamination tests, FleetRunner heavy-duty tensioners lasted up to 3X longer than competitive aftermarket tensioners.
- Optimized components engineered for maximum strength and durability
- Patented design provides superior belt alignment and tension for improved drive efficiency and life
- Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
- Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
- Double row bearings carry more load and last up to 3X longer than two individual bearings
- Chrome-silicone round torsion spring for less flex-fatigue than flat-spring designs
- Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components
Material
Steel
Contact Surface
Smooth/Backside
Pulley 1 Flanged
No
Mounting Hole Quantity
1
Pulley Quantity
1
Belt Type
V-Ribbed
Width 1 (mm)
57
Width 1 (in)
2.24
Outside Diameter 1 (in)
3
Bearing Bore Inside Diameter
.67
Contents
Tensioner Assy.
Pulley 1 Groove Quantity
0
Outside Diameter 1 (mm)
76
