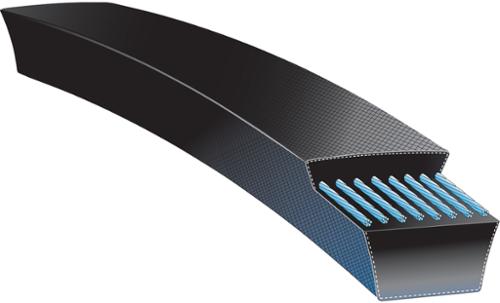

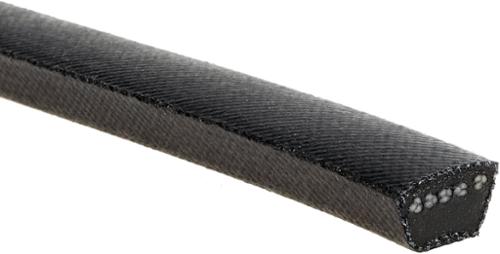

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
Belt Material
EPDM
Cord Material
Polyester
Cross Section Designation
3L
Notched
No
Strand Quantity
1
Construction
Wrapped
Type
FHP Low Horse-Power V-Belt
Outside Circumference
53
Effective Length
52.68
Top Width
.38
Angle
38
