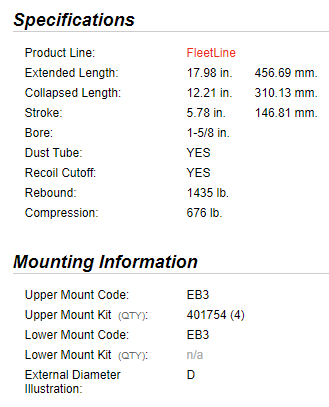

Upper Mount Code
EB3
Stroke (in)
5.78
External Diameter Illustration
D
Compression (lb)
676
Bore
1-5/8"
Dust Tube Material
Steel
Features/Benefits
Formulated shock oil for exceptional anti-fade performance
Package Contents
1 Shock & Accessory Kit
Strut Mount Design
Upper
Lower Mount Code
EB3
Features/Benefits 7
Formulated shock oil for exceptional anti-fade performance
California Proposition 65
Warning: Cancer & Reproductive Harm www.P65Warnings.ca.gov
Features/Benefits 6
Durable piston seal design
Dust Tube
YES
Features/Benefits 5
Anti-corrosion end mounts to inhibit rust & corrosion
Features/Benefits 4
Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
Rebound (lb)
1435
Features/Benefits 3
Solid steel eye rings & 360deg arc-welded end mounts deliver tough tensile strength that reduces end mount failures
Features/Benefits 2
Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series)
Features/Benefits 1
Larger 1 5/8" bore supplies improved durability and greater tensile strength for harsher operating conditions
Recoil Cutoff
YES
Extended Length (in)
17.98
Installation Hardware Included
Yes
Accessory Kit #
401754 (4 )
Collapsed Length (in)
12.21
Weight (lbs)
8.2
