Upper Mount Code
S21
Stroke (in)
9.86
External Diameter Illustration
C
Compression (lb)
254
Features/Benefits
Formulated shock oil for exceptional anti-fade performance
Bore
1-5/8"
Dust Tube Material
Steel

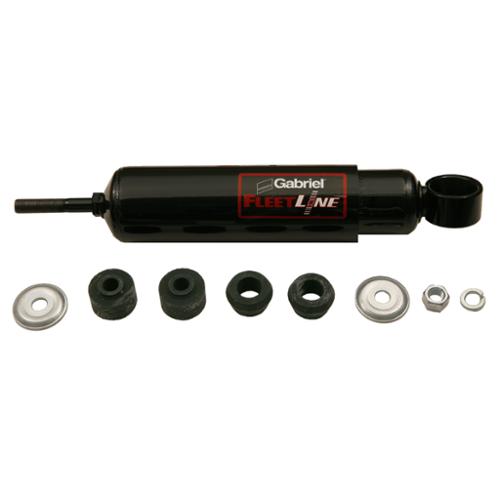

Package Contents
1 Shock & Accessory Kit
Strut Mount Design
Upper
Lower Mount Code
EB3
Features/Benefits 7
Formulated shock oil for exceptional anti-fade performance
Features/Benefits 6
Durable piston seal design
California Proposition 65
Warning: Cancer & Reproductive Harm www.P65Warnings.ca.gov
Features/Benefits 5
Anti-corrosion end mounts to inhibit rust & corrosion
Dust Tube
YES
Features/Benefits 4
Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
Features/Benefits 3
Solid steel eye rings & 360deg arc-welded end mounts deliver tough tensile strength that reduces end mount failures
Rebound (lb)
764
Features/Benefits 2
Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series)
Features/Benefits 1
Larger 1 5/8" bore supplies improved durability and greater tensile strength for harsher operating conditions
Recoil Cutoff
YES
Installation Hardware Included
Yes
Extended Length (in)
27.26
Accessory Kit #
145099 (1)
Collapsed Length (in)
17.4
Weight (lbs)
8.8
