4"(4.00) I.D. TO 4-1/2"(4.50) I.D. X 7.00" L. CHARGE AIR COOLER REDUCER HOSE

PART FLX7866
SUPPLIER FlexFab
SUPPLIER PART # 7866
Calculating price...
QUANTITY

About this item

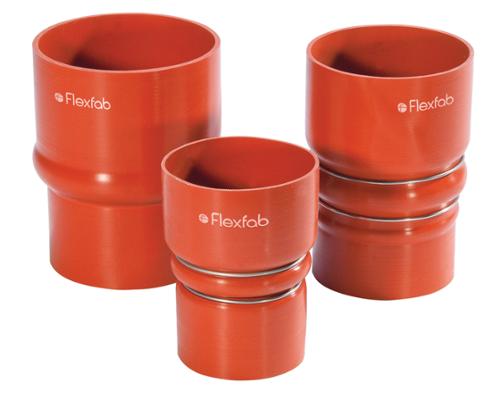

Charge air convoluted (CAC) reducers can be used on both hot side and cold side of the CAC system and are constructed with 4-ply silicone coated meta-aramid fabric. Custom engineered to withstand harsh environments, they are resistant to extreme temperatures and pressures.

  • Can be Used on Both Hot Side and Cold Side of the CAC System;Extreme Temperature Resistance;Extreme Duty Cycle Tested for Hostile Engine Environments;High Pressure Resistance
24456_FLX_Charge_Air_Connector_Convoluted_Reducer_Data_Sheet
24456_FLX_Charge_Air_Connector_Convoluted_Reducer_Data_Sheet.pdf
Inside Diameter 4.00/4.50 IN
Stainless Steel Rings 3
Associated Clamp (not included) 2583-0400/2583-0450/2584-0512
Weight (LB) 0.6 LBS
Max Opperating Pressure 45 PPI
Convolutes (Humps) 2
Overall Length 7 IN
Outside Diameter 4.23/4.73 IN
