3"(3.00) I.D. TO 4"(4.00) I.D. X 6.30" L. CHARGE AIR COOLER REDUCER HOSE

PART FLX7766
SUPPLIER FlexFab
SUPPLIER PART # 7766
Calculating price...
QUANTITY

About this item

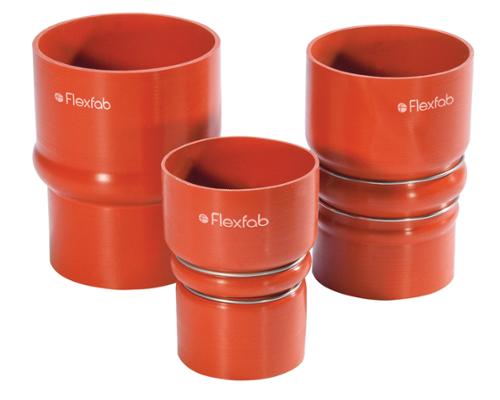

Charge air convoluted (CAC) reducers can be used on both hot side and cold side of the CAC system and are constructed with 4-ply silicone coated meta-aramid fabric. Custom engineered to withstand harsh environments, they are resistant to extreme temperatures and pressures.

  • Can be Used on Both Hot Side and Cold Side of the CAC System;Extreme Temperature Resistance;Extreme Duty Cycle Tested for Hostile Engine Environments;High Pressure Resistance
9566_FLX_Charge_Air_Connector_Convoluted_Reducer_Data_Sheet
9566_FLX_Charge_Air_Connector_Convoluted_Reducer_Data_Sheet.pdf
Inside Diameter 3.00/4.00 IN
Stainless Steel Rings 2
Associated Clamp (not included) 2583-0300/2583-0400/2584-0362/2584-0462
Weight (LB) 0.5 LBS
Max Opperating Pressure 50 PPI
Convolutes (Humps) 1
Overall Length 6.3 IN
Outside Diameter 3.23/4.23 IN
