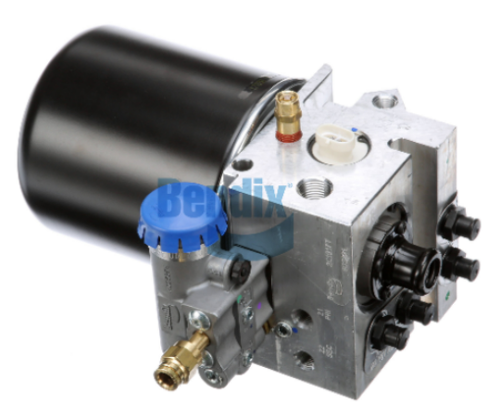

BENDIX NEW AD-IS AIR DRYER ASSEMBLY 12-VOLT

PART BEN802191
SUPPLIER Bendix
SUPPLIER PART # 802191
Calculating price...
QUANTITY

About this item

New Air Dryer Assembly, Bendix AD-IS, 12-Volt, Used On Dryers With Purge Volume Reservoir , Has Plugged 'A' Port - Bendix AD-IS air dryers with a plugged port 'A' can not be interchanged with those that do not have a port.

There are currently no resources for this product.

Cut-out Pressure 130 PSI
Mounting Mount to Purge Reservoir (Not Included)
Governor Included Yes
Minimum Operating Temperature -40 AdegF (-40 AdegC)
AUX 1 Delivery Port 4 1/4-18 NPT
SEC Delivery Port 22 1/4-18 NPT
AUX 1 Delivery Port 1 1/4-18 NPT
Remote Charge / Fill Port 1 (after Desiccant) Not applicable to this part
AUX 1 Delivery Port 3 1/4-18 NPT
AUX 1 Delivery Port 2 1/4-18 NPT
Cartridge Thread M39 x 1.5-6H RH
Safety Valve Opening Pressure 153 PSI
Heater Connector Type Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Remote Charge / Fill Port (through Desiccant) Not applicable to this part
Clearance to Remove Cartridge 1.00 IN
Governor Type Non-Adjustable
AUX 2 Delivery Port 1/4-18 NPT
Purge Valve Type Hard Seat
Remote Charge / Fill Port 2 (after Desiccant) Not applicable to this part
Reservoir Diameter Not applicable to this part
Governor Unloader Port 3/8 PTC (Straight)
Reservoir Fill Type Not applicable to this part
Cautionary Note(s) Pressure protection valve configs are not interchangeable.
Number of Compartments Not applicable to this part
Governor Reservoir Port 1/8-27 NPT (Plugged)
PRI Delivery Port 21 1/4-18 NPT
Cartridge Type Standard
Cut-in Pressure 110 PSI
Purge Exhaust Port Standard
Maximum Inlet Temperature 160 AdegF (71 AdegC)
Reservoir Material Not applicable to this part
AUX 1 Delivery Opening Pressure 106 PSI
Heater / Thermostat Rating 12V / 90W
SEC Delivery Opening Pressure 106 PSI
Compressor Unloader Port Not applicable to this part
Air Dryer Type Stand-Alone
Purge Volume Not applicable to this part
Heater Connector Color White
Supply Port 1/2-14 NPT
Pressure Range Not applicable to this part
Pressure Protection Valve Configuration 4 in Parallel
AUX 2 Delivery Opening Pressure 106 PSI
Market Indicator Aftermarket New
Reservoir Length Not applicable to this part
PRI Delivery Opening Pressure 106 PSI
