Home Air System Air Dryers Air Dryer Assemblies BENDIX NEW AD-SP AIR DRYER KIT WITH SC-PR VALVE 24-VOLT

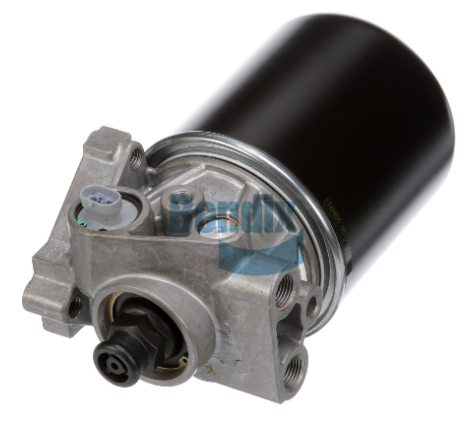

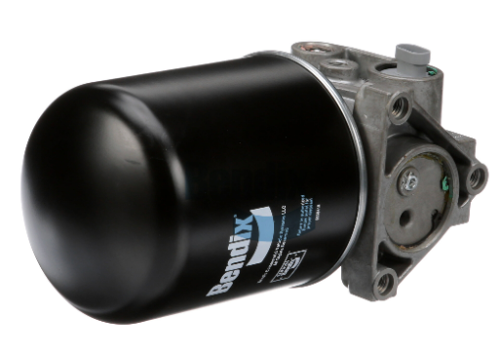

BENDIX NEW AD-SP AIR DRYER KIT WITH SC-PR VALVE 24-VOLT

PART BEN800972
SUPPLIER Bendix
SUPPLIER PART # 800972
Calculating price...
QUANTITY

About this item

New Air Dryer Assembly, Bendix AD-SP, Includes SC-PR Valve, 24-Volt

There are currently no resources for this product.

Cut-out Pressure Not applicable to this part
Upper Mounting Bracket Angle (CCW from SUP) Not applicable to this part
Control Port 1/4-18 NPT
Body Mounting 1/2-13 UNC-2B (3x)
Purge Exhaust Port Standard
Maximum Inlet Temperature 150 degF (66 degC)
Governor Included Not applicable to this part
Minimum Operating Temperature -40 degF (-40 degC)
Net Weight 4.332 KG
Turbo Cut-off Function Yes
Heater / Thermostat Rating 24V / 90W
Delivery Port 1 1/2-14 NPT
Delivery Port 2 Not applicable to this part
Governor Mounting Bracket Angle (CCW from SUP) Not applicable to this part
Cartridge Thread M39 x 1.5-6H RH
Upper Mounting Bracket Not applicable to this part
Safety Valve Opening Pressure Not applicable to this part
Clamp Band Angle (CW from SUP) Not applicable to this part
Remote Fill Feature Not applicable to this part
Governor Mounting Bracket Not applicable to this part
Heater Connector Type Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Governor Type Not applicable to this part
Clearance to Remove Cartridge 1.00 IN
Extended Purge Port Not applicable to this part
Purge Valve Type Soft Seat
Air Dryer Type Stand-Alone
Purge Volume System Air - Customer Defined
Harmonized Schedule (HS) Code 842139
Heater Connector Color Gray
Supply Port 1/2-14 NPT
Cartridge Stabilizer Ring Included Not applicable to this part
Cautionary Note(s) Not applicable to this part
Remote Purge Port Not applicable to this part
Lower Mounting Bracket Angle (CCW from SUP) Not applicable to this part
Lower Mounting Bracket 1/2-13 UNC-2B (3X) - Flange Mount
Upper Mounting Type Not applicable to this part
Cartridge Type Standard
Upper Mounting Bracket Height (from Lower Mounting Bracket) Not applicable to this part
Cut-in Pressure Not applicable to this part
Market Indicator Aftermarket New
