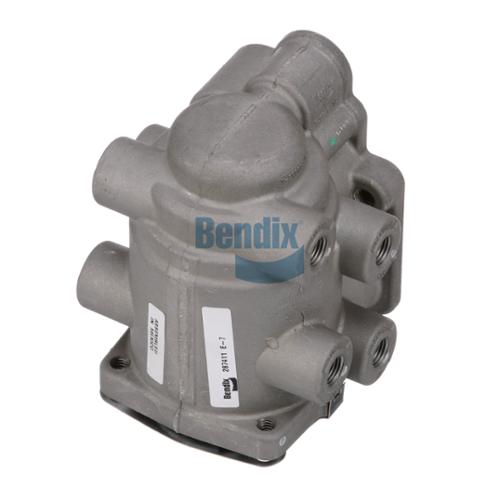

E-7 Foot Brake Valve Service New

PART BEN287411N
SUPPLIER Bendix
SUPPLIER PART # 287411N
Calculating price...
QUANTITY

About this item

E-7 Foot Brake Valve Service New

There are currently no resources for this product.

Supply (12) Port 1 3/8-18 NPT
Plunger Material Not applicable to this part
Supply (12) Port 2 1/4-18 NPT
Supply (11) Port 1 3/8-18 NPT
Supply (11) Port 2 1/4-18 NPT
Supply (11) Port 3 1/2-14 NPT
Minimum Operating Temperature -40 AdegF (-40 AdegC)
Pedal Included No
Mounting Stud Length Not applicable to this part
Regulatory Compliance FMVSS 121
Graduation Spring Style Rubber
Supply (12) Port 3 1/2-14 NPT
Initial Pedal Angle Not applicable to this part
Supply (12) Port 4 1/8-27 NPT
Pedal Material Not applicable to this part
Mounting Nuts / Washers Included Not applicable to this part
Port Configuration Side / Rear
Mounting (Valve Body) 5/16-18 UNC-3B (3x)
Rubber Boot Included No
Waterproof No
Maximum Operating Temperature 200 AdegF (93 AdegC)
Pedal Length (from Pivot) Not applicable to this part
Differential Pressure 3.0 PSI
Mounting Plate Included No
Pedal Offset Not applicable to this part
Pedal Style Not applicable to this part
Mounting (Vehicle) 3/8-16 UNC-3B (3x)
Pedal Pad Included Not applicable to this part
Pedal Length (Overall) Not applicable to this part
Total Pedal Travel Not applicable to this part
Delivery (21) Port 1 3/8-18 NPT
Delivery (22) Port 3 1/2-14 NPT
Delivery (21) Port 3 1/2-14 NPT
Exhaust Port 1/2-14 NPT
Delivery (21) Port 2 1/4-18 NPT
Delivery (22) Port 2 1/4-18 NPT
Delivery (22) Port 1 3/8-18 NPT
Manifold Included No
Market Indicator Aftermarket New
