PART BEN102626N

SUPPLIER Bendix

SUPPLIER PART # 102626N

Calculating price...

QUANTITY

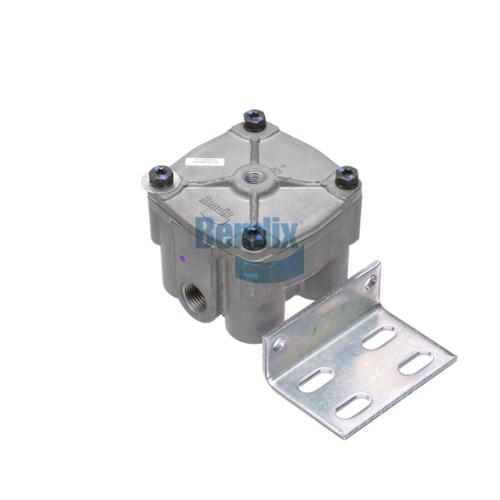

R-12 Relay Valve Service New

There are currently no resources for this product.

Supply Port 2 Not applicable to this part

Body Configuration 1 SUP / 4 DEL (V)

Mounting .96 IN x .40 IN Slot (4x)

Delivery Port 5 Not applicable to this part

Minimum Operating Temperature -40 AdegF (-40 AdegC)

Delivery Port 6 Not applicable to this part

Delivery Port 3 1/2-14 NPT

Delivery Port 4 1/2-14 NPT

Delivery Port 1 1/2-14 NPT

Delivery Port 2 1/2-14 NPT

Control / Secondary Service Port 1/4-18 NPT

Mounting Orientation (CW from Front Face) Not applicable to this part

Delivery Port 7 Not applicable to this part

Delivery Port 8 Not applicable to this part

Mounting Bracket Direction Not applicable to this part

Supply Port 1 1/2-14 NPT

Maximum Operating Temperature 200 AdegF (93 AdegC)

Crack Pressure 4.0 PSI

Internal Supply Passage to Cover Not applicable to this part

Control Port Orientation (CW from Front Face) Not applicable to this part

Mounting Bracket Location Loose in Box

TMC Washer RV040

Cautionary Note(s) Not applicable to this part

Exhaust Port Dust Shield

Market Indicator Aftermarket New

Balance / Primary Service Port Not applicable to this part
