Home Air System Air Valves Foot Control Valves E-7 Foot Brake Valve Service New

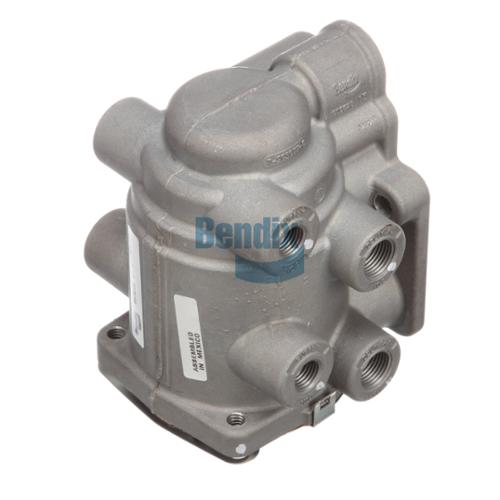

E-7 Foot Brake Valve Service New

PART BEN101818N
SUPPLIER Bendix
SUPPLIER PART # 101818N
Calculating price...
QUANTITY

About this item

E-7 Foot Brake Valve Service New

There are currently no resources for this product.

Supply (12) Port 1 1/4-18 NPT
Supply (12) Port 2 1/4-18 NPT
Plunger Material Not applicable to this part
Supply (11) Port 1 1/4-18 NPT
Supply (11) Port 2 1/4-18 NPT
Supply (11) Port 3 1/2-14 NPT
Minimum Operating Temperature -40 degF (-40 degC)
Net Weight 1.774 KG
Pedal Included No
Mounting Stud Length Not applicable to this part
Initial Pedal Angle Not applicable to this part
Graduation Spring Style Rubber
Product Width 103.0 CM
Regulatory Compliance FMVSS 121
Supply (12) Port 3 1/2-14 NPT
Supply (12) Port 4 1/8-27 NPT
Pedal Material Not applicable to this part
Mounting Nuts / Washers Included Not applicable to this part
Mounting (Valve Body) 5/16-18 UNC-3B (3x)
Port Configuration Side / Rear
Rubber Boot Included No
Maximum Operating Temperature 200 degF (93 degC)
Pedal Length (from Pivot) Not applicable to this part
Waterproof No
Differential Pressure 3.0 PSI
Mounting Plate Included No
Pedal Offset Not applicable to this part
Pedal Style Not applicable to this part
Harmonized Schedule (HS) Code 848120
Mounting (Vehicle) 3/8-16 UNC-3B (3x)
Pedal Pad Included Not applicable to this part
Product Height 150.0 CM
Pedal Length (Overall) Not applicable to this part
Delivery (21) Port 1 3/8-18 NPT
Total Pedal Travel Not applicable to this part
Product Length 111.0 CM
Delivery (22) Port 3 1/2-14 NPT
Delivery (21) Port 3 1/2-14 NPT
Delivery (21) Port 2 3/8-18 NPT
Exhaust Port Dust Shield
Delivery (22) Port 2 3/8-18 NPT
Delivery (22) Port 1 3/8-18 NPT
Manifold Included No
Market Indicator Aftermarket New
Unit of Dimension CM
